Diagram #

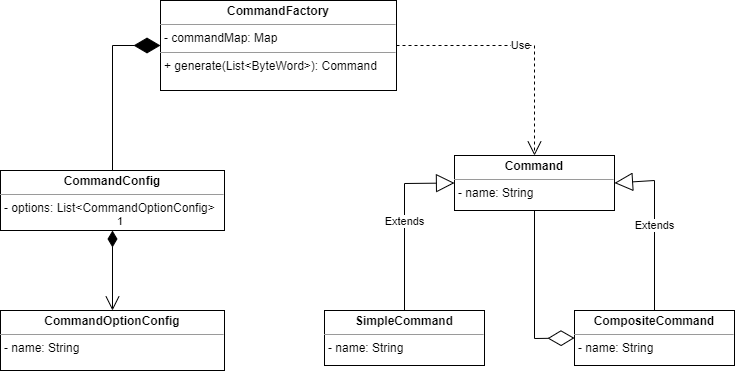

command parse class diagram

CommandConfig #

This describes a command, the name, key, value, and other options, all are optional but name.

Assumptions for a command:

name must be unique globally
each data type has its own command, no command shares
if no key, then no value
each command has zero or more options
each command option must have a name, may or may not have a value
each command option may have zero or more followers, it’s used to define options order.
if a command support multiple values, options must be shown before values

CommandConfig will be defined in CommandFactory.

CommandOptionConfig #

Describes command option, including option name, whether it’s required, and whether it has a value.

Example

// no value, name is EX
NX
// name is EX, value is 500
EX 500

Command #

Each command has a unique name, and each command is used for different data types.

CompositeCommand is used to support pipe in Redis.

Currently only SimpleCommand is supported.

CommandFactory #

CommandFactory will parse given ByteWord list to a Command if it’s valid, or throw InvalidCommandException.

the parse process:

first parse key

        Map<String, ByteWord> optionMap = new HashMap<>();
        if (commandConfig.requireKey()) {
            if (index < words.size()) {
                key = words.get(index++);
            } else {
                throw new InvalidCommandException(commandConfig.name(), "key required");
            }
        }

then parse values and options, the order depends on whether the command support multiple values

        List<CommandOptionConfig> options = commandConfig.options();

        if (commandConfig.supportMultiValues()) {
            // parse options first
            optionParsed = true;
            if (index < words.size() && options != null && !options.isEmpty()) {
                index = parseOptions(commandConfig, options, words, index, optionMap);
            }
        }

        if (commandConfig.requireValue() && index < words.size()) {
            if (commandConfig.supportMultiValues()) {
                values = new ArrayList<>(words.subList(index, words.size()));
                index = words.size();
            } else {
                values = new ArrayList<>(words.subList(index, index + 1));
                index++;
            }
        }

        if (commandConfig.requireValue() && values == null) {
            throw new InvalidCommandException(commandConfig.name(), "value required");
        }

        if (!optionParsed && index < words.size() && options != null && !options.isEmpty()) {
            parseOptions(commandConfig, options, words, index, optionMap);
        }

parse options

    private int parseOptions(CommandConfig commandConfig, List<CommandOptionConfig> optionConfigs, List<ByteWord> words,
                             int index, Map<String, ByteWord> optionMap) {
        while (index < words.size()) {
            ByteWord byteWord = words.get(index);
            String name = byteWord.getString();
            boolean parsed = false;
            for (CommandOptionConfig option : optionConfigs) {
                if (option.name().equals(name)) {
                    index++;
                    index = parseOption(commandConfig, option, words, index, optionMap);
                    parsed = true;
                    break;
                }
            }
            // found an unknown option, what to do?
            if (!parsed) {
                index++;
            }
        }

        return index;
    }

parse a single option and it’s followers

    private int parseOption(CommandConfig commandConfig, CommandOptionConfig optionConfig, List<ByteWord> words,
                            int index, Map<String, ByteWord> optionMap) {
        ByteWord value = ByteWord.NULL;
        if (optionConfig.valueRequired() && index < words.size()) {
            value = words.get(index++);
            if (optionConfig.valueIsNumber() && !value.isNumber()) {
                throw new InvalidCommandException(commandConfig.name(),
                        String.format("%s should be a number", optionConfig.name()));
            }
        }
        if (optionConfig.valueRequired() && value == ByteWord.NULL) {
            throw new InvalidCommandException(commandConfig.name(),
                    String.format("option %s value is required", optionConfig.name()));
        }
        optionMap.put(optionConfig.name(), value);

        if (optionConfig.nextOptions() != null && !optionConfig.nextOptions().isEmpty()) {
            index = parseOptions(commandConfig, optionConfig.nextOptions(), words, index, optionMap);
            for (CommandOptionConfig config : optionConfig.nextOptions()) {
                if (config.required() && !optionMap.containsKey(config.name())) {
                    throw new InvalidCommandException(commandConfig.name(),
                            String.format("option %s is required", config.name()));
                }
            }
        }
        return index;
    }

after parse, a command will be passed to database.
